Product Introduction

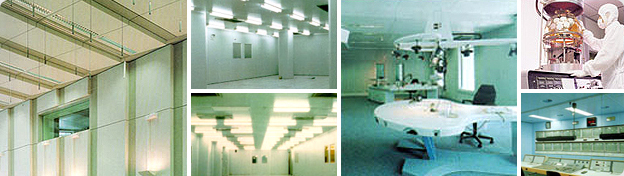

Steel sheet is painted and baked using a mixture of highpolymer resin and metal oxide. The surface electric resistance of 10Ω/sg lends to dust resistance and anti-static qualities, making this an ideal product for clean rooms
- Semi-conductor factory
- Precision instrument factory
- Computer room
- Hospital interiors
- Pharmaceutical factory
- Chemical factory, GAS, SOLVENT for factories having dangerous stuff
- Photoengraving room
- Food factory
- Paint factory
Cross section of painted product

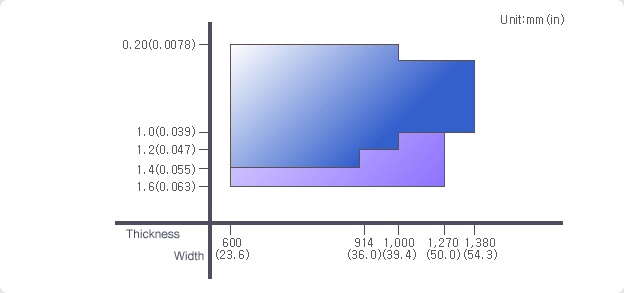

Size Availability
Test Item
Test item | Test method | Test result | Related specification |
Cross cut test | 11×11-㎜ | Good | KS D 3520 |
Pencil hardness test | 45˚, 1H and over | Good | KS D 3520 |
Bending test | 180˚×3T | Good | KS D 3520 |
Impact test | 500g×12.7㎜φ×500㎜H | Good | KS D 3520 |
Salt water spray test | 5%Nacl 35˚ | 500hours Good |
KS D 9520 JIS Z 2371 |
Resistance to chemicals | 5%H₂SO₄×5Hr 5%NaOH×5Hr |
Good Good |
DS-B-I-1112 |
Accelerated weathering test |
Weather-O-Meter | 750hours Good |
JIS Z 0230 |
Film hardness test | M.E.K Rubbing | 40Times Good |
DS-B-I-1112 |
※ Test standards for cutting thickness and color can be changed.
Applied Specifications
- KS D 3520
- JIS G 3312
- ASTM A 653
