Product Introduction
Sophisticated colors and attractive patterns
Laminated steel sheet presents a modern and contemporary image with its sophisticated colors and attractive patterns that erase the conventional image customers have of steel sheet.
Outstanding workability
The elasticity of the plastic prevents unwanted changes in the pattern and/or exfoliation during deep drawing.
Superb durability and chemical resistance
Superb durability, along with chemical resistance against acid and alkali, in particular, allow the laminated sheet to be used in environments susceptible to corrosion such as factory areas.
Cost reduction and efficiency
The elimination of the coating process reduces cost and simplifies the production process.

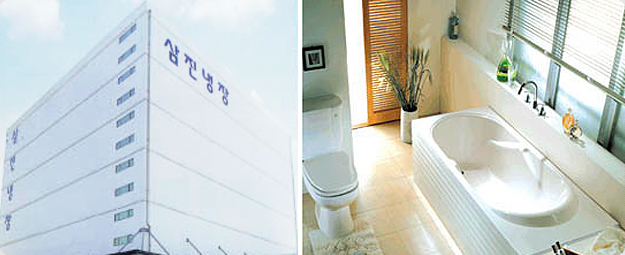

- cold storage warehouse
- Unit-bath
- electrical home appliances (refrigerator, washing machine, air conditioner etc)
- Partition

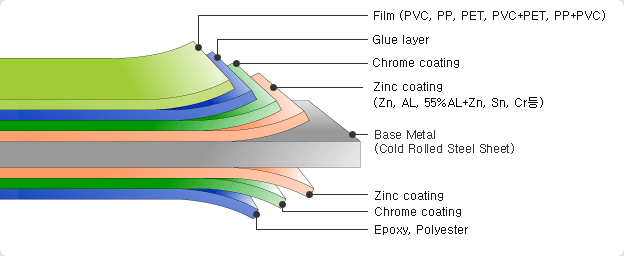

Cross section of painted product

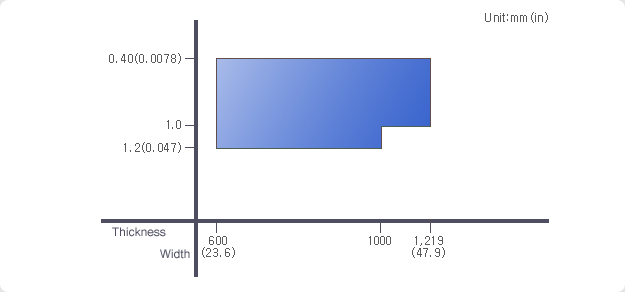

Size availability
Test items
| Test item | Test method | Test result | Related specification |
|
Cross-cut test |
100 × 100, TAPING |
Good | - |
| Impact test | 500g×12.7㎜×500㎜H | Good | - |
| Erichsen test | 6㎜ | Good |
Dongbu Standard |
| Resistance to chemicals | 13%H2SO4×5Hr 13%NaOH×5Hr |
Good Good |
- |
| Salt water spray test |
1000HR |
Good | - |
| Accelerated weathering test |
Weather-O-Meter×250Hr | Good | - |
Pattern
Laminate
Deep Embossed
Highgross
