Product Introduction
After the cold-rolling process, cold-rolled steel plates are annealed and temper rolled, a process that uses a work roll with a fine level of surface roughness. The process reduces the surface roughness of bright steel sheet to less than 0.2μRa, giving the sheet a high-gloss surface finish, similar to that of stainless steel sheet.
Applications

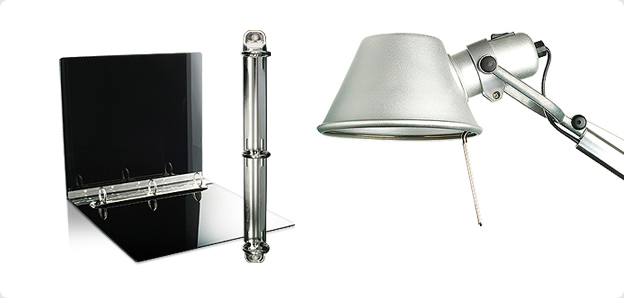

Products that require a bright, shiny surface after being coated with nickel or chrome such as accessories, ornaments, stationery supplies (binders, clips), dining ware, and light and heat reflectors.
Product Types and Size
Types of Products
Bright finished steel sheet is categorized as both commercial material and hard material. Dongbu Steel supplies products in the following sizes.
|
Type |
Grade |
Hardness |
Surface Roughness |
Gloss (GS 20°) |
Remarks |
|
Commercial |
SB | 57 and less | Max. 0.25 | 400 and more | |
|
Hard material |
1/8H (8B) | 50 - 71 | |||
| 1/4H (4B) | 65 - 80 | 250 and more | |||
| 1/2H (2B) | 74 - 89 | ||||
| F/H (1B) | 85 and more | Max. 0.40 | - |
Size
|
Type |
Grade |
Mechanical Property |
Surface Roughness |
Remarks | |||
|
Hardness |
YP (kg/mm2) |
TS (kg/mm2) |
EL (%) | ||||
|
Commercial material |
SB | 51.5 (41.0-57.0) |
21.5 (16.8-26.9) |
35.2 (32.0-38.0) |
39.8 (41.0-59.0) |
0.090 (0.03-0.19) |
▶ 4B Product hardness range can be modified |
|
Hard material |
1/8H (8B) | 58.9 (55.0-66.0) |
23.7 (20.5-28.8) |
38.8 (35.8-41.0) |
38.3 (35.8-40.7) |
0.094 (0.05-0.20) | |
| 1/4H (4B) | 70.0 (66.0-77.0) |
38.4 (35.8-40.2) |
40.8 (39.4-45.0) |
24.8 (19.2-32.1) |
0.095 (0.08-0.18) | ||
Production Availability
Commercial Bright Steel Sheet; Hard Bright Steel Sheet (1/8 H)
DCR Products (thickness 0.8mm or less)
* Thickness 0.25mm - 0.8mmt, width 750mm - 1250mm
( Note:Thickness 0.20mm is available for 3' products only )
TPL Products (thickness 0.8 mm or more)
* Thickness 0.4mmt - 0.8mmt is available for widths of 1,250mm - 1,600mm
* Thickness 0.3mmt - 0.4mmt is available for widths of 1,250mm - 1,350mm
* Thickness 0.8mmt - 1.6mmt is available for widths of 750mm - 1,600mm
* Thickness 1.6mmt - 2.0mmt is available for widths of 750mm - 1,350mm
Hard Bright Steel Sheet
1/4H, 1/2H: Thickness 0.6mmt or less only
* Thickness 0.2mmt - 0.6mmt, width 750mm - 1,250mm
1B - Full Hard
* Rolled products: HR ⇒ PL-TCM (Pickling line coupled with tandem cold-rolling mill
) ⇒ Products
* In PL-TCM, same size as full hard production
* HR ⇒ PL-TCM (Pickling line coupled with tandem cold-rolling mill) ⇒ ECL (Electrolytic Cleaning Line) ⇒ RCL (Recoiling Line) ⇒ Products
* Thickness 0.25mmt - 1.0mmt, width 750 - 1250mm (Thickness 0.20mmt is available for 3')
